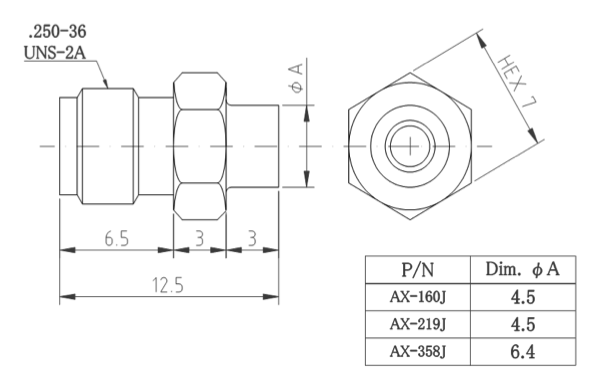

| Configuration | ||
|---|---|---|
| Connector type | SMA jack/female | |
| Cable series (size) | SC-160/50 series (outer diameter size 1.60mm) | |
| Body type | Straight | |
| Cable attachment method | Solder | |
| Electrical properties | ||
|---|---|---|
| Frequency range | DC to 18GHz | |
| Characteristic impedance | 50ohms | |
| Insulation resistance @DC500V | Minimum 10,000 megohms | |
| Dielectric withstanding voltage @sea level | 1,000Vrms | |
| Mechanical properties | ||
|---|---|---|
| Body material and plating | Gold-plated stainless steel | |
| Contact material and plating | Gold-plated beryllium copper | |
| Dielectric | PTFE | |
