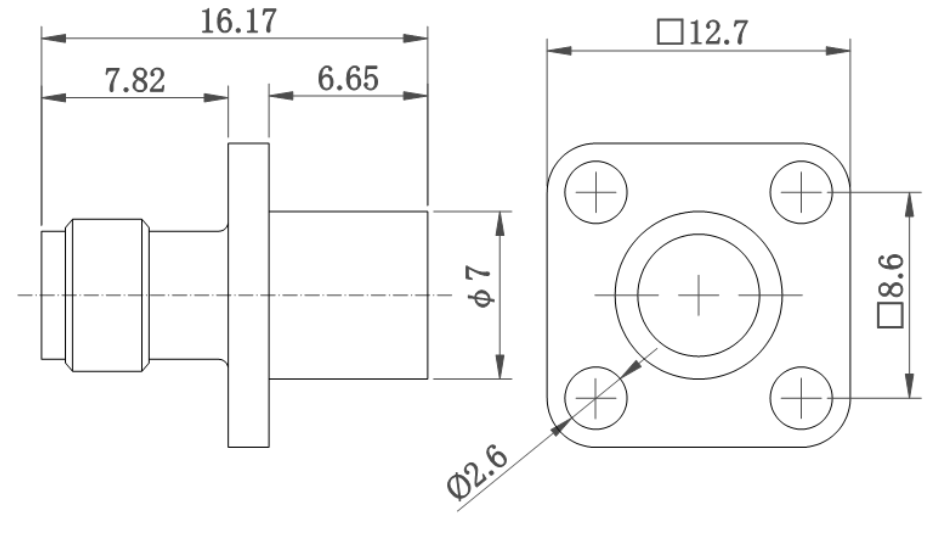

AX-500PJ

AX-500PJ



Configuration
Connector type SMA jack/female 4 hole panel flange
Cable series (size) SC-500/50 series (outer diameter size 5.00mm)
Body type Straight
Cable attachment method Solder



Electrical properties
Frequency range DC to 18GHz
Characteristic impedance 50ohms
Insulation resistance @DC500V Minimum 10,000 megohms
Dielectric withstanding voltage @sea level 1,000Vrms



Mechanical properties
Body material and plating Gold-plated stainless steel
Contact material and plating Gold-plated beryllium copper
Dielectric PTFE
