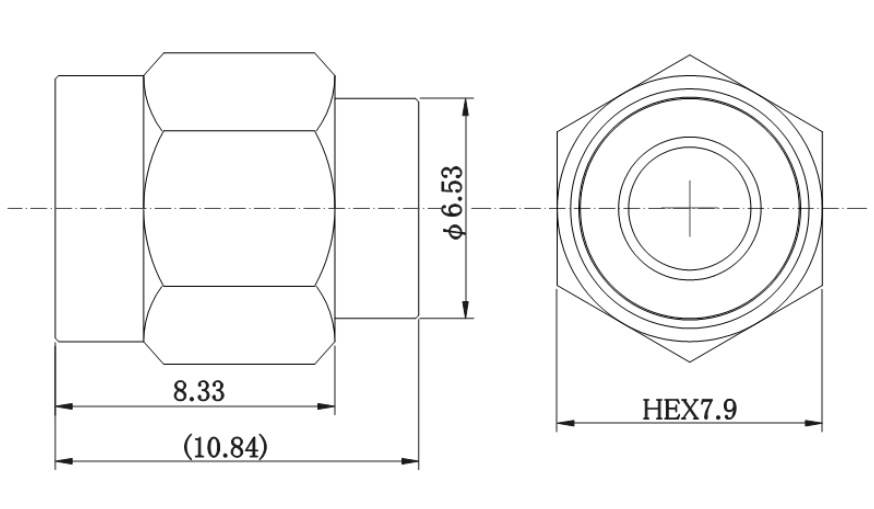

AX-358P/Pin

AX-358P-Pin



Configuration
Connector type SMA plug/male
Cable series (size) SC-358/50 series (outer diameter size 3.58mm)
Body type Straight
Cable attachment method Solder



Electrical properties
Frequency range DC to 18GHz
Characteristic impedance 50ohms
Insulation resistance @DC500V Minimum 10,000 megohms
Dielectric withstanding voltage @sea level 1,000Vrms



Mechanical properties
Body material and plating Gold-plated stainless steel
Contact material and plating Gold-plated brass
Coupling nut material and plating Gold-plated stainless steel
Dielectric PTFE
Gasket Silicon
Retaining ring Beryllium copper
