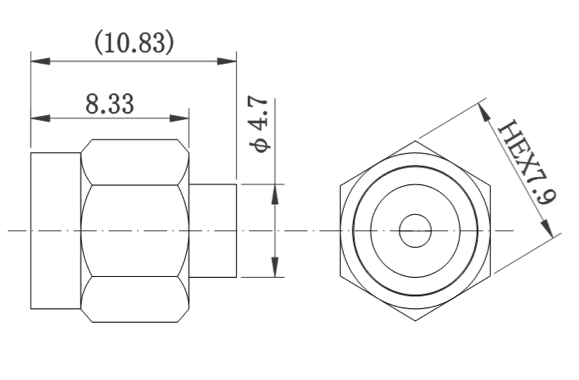

AX-219P-NM

AX-219P-NM



Configuration
Connector type SMA plug/male (Non-magnetic)
Cable series (size) SC-219/50 series (outer diameter size 2.19mm)
Body type Straight
Cable attachment method Solder



Electrical properties
Frequency range DC to 18GHz
Characteristic impedance 50ohms
Insulation resistance @DC500V Minimum 10,000 megohms
Dielectric withstanding voltage @sea level 1,000Vrms



Mechanical properties
Body material and plating Gold-plated beryllium copper
Contact material and plating Gold-plated beryllium copper
Coupling nut material and plating Gold-plated beryllium copper
Dielectric PTFE
Gasket Silicon
Retaining ring Beryllium copper

Assembly instructions
