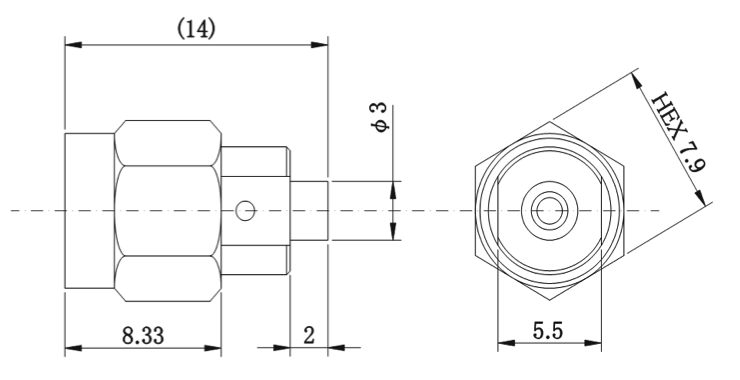

AX-086P

ax-086p



Configuration
Connector type SMA plug/male
Cable series (size) SC-086/50 series (outer diameter size 0.86mm)
Body type Straight
Cable attachment method Solder



Electrical properties
Frequency range DC to 18GHz
Characteristic impedance 50ohms
Insulation resistance @DC500V Minimum 5,000 megohms
Dielectric withstanding voltage @sea level 500Vrms



Mechanical properties
Body material and plating Gold-plated brass
Contact material and plating Gold-plated brass
Coupling nut material and plating Gold-plated stainless steel
Dielectric PTFE
Gasket Silicon
Retaining ring Beryllium copper
