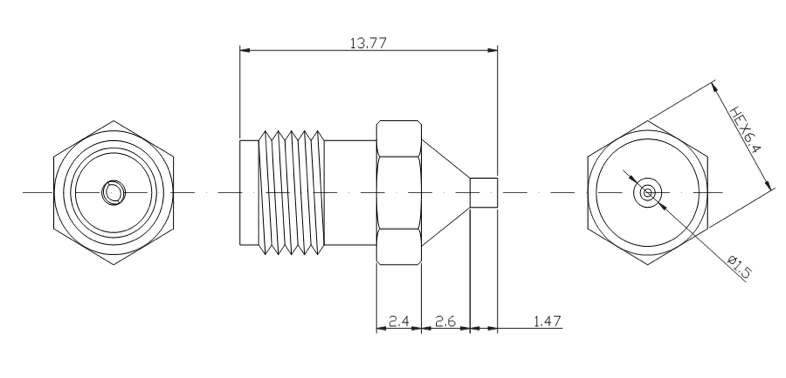

AX-033J

AX-033J



Configuration
Connector type SMA jack/female
Cable series (size) SC-033/50 series (outer diameter size 0.33mm)
Body type Straight
Cable attachment method Solder



Electrical properties
Frequency range DC to 6GHz
Characteristic impedance 50ohms
Insulation resistance @DC500V Minimum 5,000 megohms
Dielectric withstanding voltage @sea level 500Vrms



Mechanical properties
Body material and plating Gold-plated brass
Contact material and plating Gold-plated beryllium copper
Dielectric PTFE

Assembly instructions
