| Coupling Level [dB] | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Coupler・Line | Form | Part Number | -3 | -4.77 | -6 | -10 | -15 | -20 | -25 | -30 | -35～ |

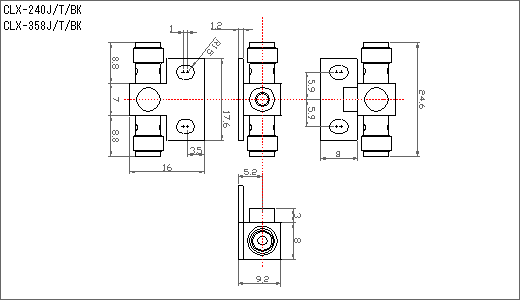

| CL-240 Series | T | CLX-240J/T | ～1 [GHz] | ||||||||

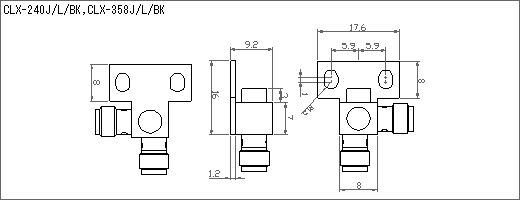

| L | CLX-240J/L | ||||||||||
| CL-358 Series | T | CLX-358J/T | ～2.5 [GHz] | ||||||||
| CLX-358JP-T | |||||||||||
| CLX-358TA/T-219 | |||||||||||
| CLX-358TA/T-219/358 | |||||||||||
| CLX-358J/T-SA | ～3 [GHz] | ||||||||||
| CLX-358J/T-ST | ～3 [GHz] | ||||||||||
| CLX-358J/T-SC | ～3 [GHz] | ||||||||||
| L | CLX-358J/L | ～2 [GHz] | |||||||||
| CLX-358JP/L | |||||||||||
| CLX-358J/L-SC | ～3 [GHz] | ||||||||||
